Hands-Free Wireless Freedom: The EIKON WM700H System
The EIKON WM700H is a professional PLL-controlled UHF wireless microphone system that provides a reliable, high-quality signal for hands-free applications. This single-channel system is a variable frequency device, offering a choice of pre-set frequencies within a specific UHF band, allowing it to be used alongside other wireless equipment without interference.

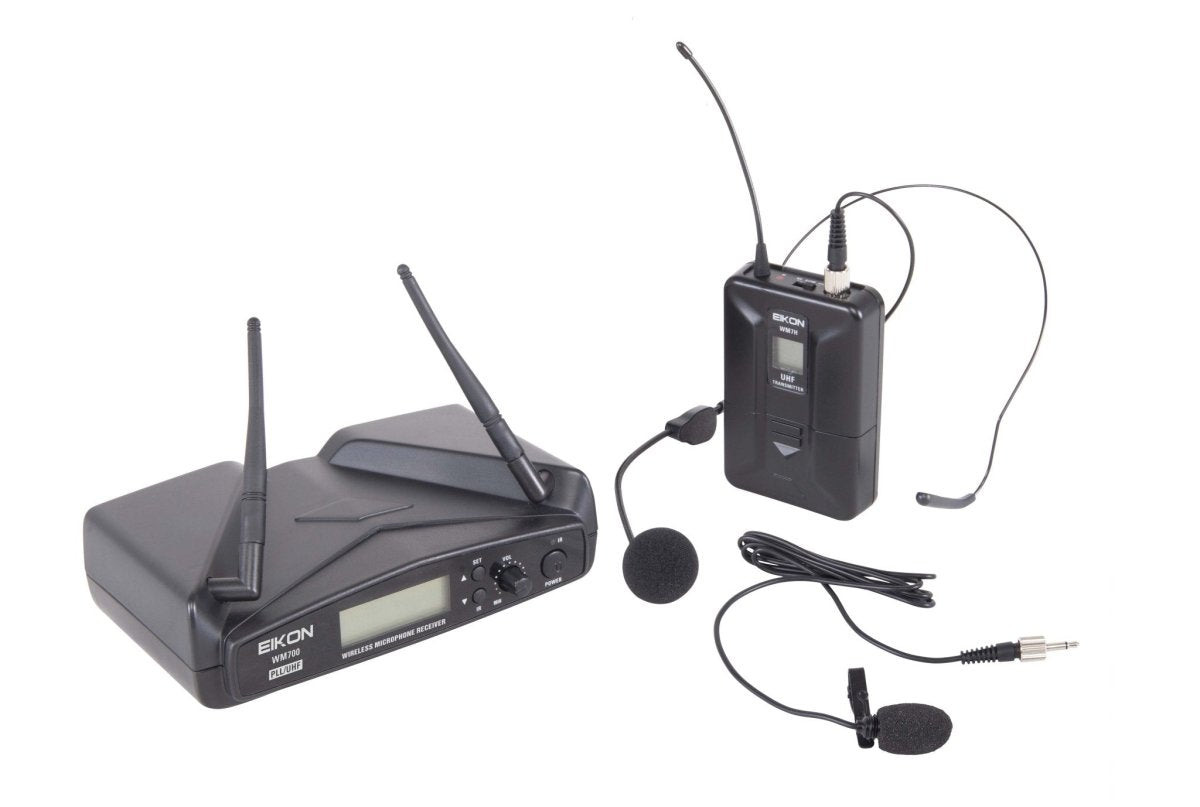

This complete system includes the WM700 receiver, the WM7H bodypack transmitter, and both a condenser headset microphone and a lavalier microphone, giving you versatile options for any presentation, performance, or event. The cardioid capsules ensure clear and focused vocal reproduction while minimizing the risk of feedback. With a range of up to 30 meters, the WM700H provides ample freedom to move around the stage or venue.
The compact and durable receiver is powered by a universal USB adapter for maximum convenience. The entire system is supplied in a rugged, lightweight ABS case, making it perfect for transport and secure storage. The EIKON WM700H is an affordable and reliable wireless solution for any hands-free audio needs.
Key Features:
-
Single Channel Wireless System: A single-channel PLL UHF variable frequency system for professional hands-free vocal use.
-
Digital Tone Pilot: Features a 32 kHz Digital Tone Pilot to ensure reliable and clear signal transmission.
-
Includes Headset and Lavalier Mics: Comes with both a condenser headset microphone with a cardioid capsule and a lavalier microphone.
-
Selectable Frequencies: Offers groups of pre-set frequencies, allowing up to 4 systems to be used in the same location (for each frequency band).
-
30-Meter Range: Provides a stable wireless connection for up to 30 meters (100 feet).
-
Professional Audio Quality: Boasts a 105 dB signal-to-noise ratio and a wide frequency response for excellent sound quality.
-
Durable and Portable: The entire system comes in a rugged ABS carrying and storage case.
-
USB Powered Receiver: The receiver is powered by a universal USB power adapter for ultimate convenience.
Technical Specifications:
WM700 – Single Channel Receiver
-
Frequency Band: UHF: 823-832 MHz
-
RF Sensitivity: -105 dBm
-
RF Image/Spurious Rejection: >70 dB
-
S/N Ratio: >105 dB
-
Frequency Response: 50 Hz – 15 KHz (±3 dB)
-
Power Supply: 5 V DC 500 mA
-
Dimensions (W x D x H): 175 x 135 x 45 mm

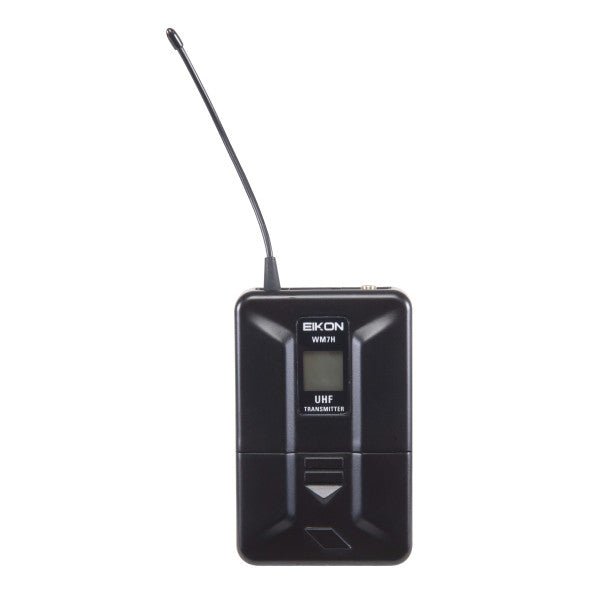

WM7H – Belt-Pack Transmitter
-
RF Power: <10 dBm
-
Modulation Method: FM (F3E)
-
Frequency Response: 50 Hz – 15 KHz (±3 dB)
-
Included Microphones: HCM25 Headset (Condenser, Cardioid), LCH100 Lavalier (Condenser, Cardioid)
-
Power Supply: 2x 1.5V AA alkaline batteries
-
Dimensions (H x W x D): 100 x 65 x 30 mm
What's in the box:
-
WM700 Single Channel Receiver
-
WM7H Belt-pack Transmitter
-

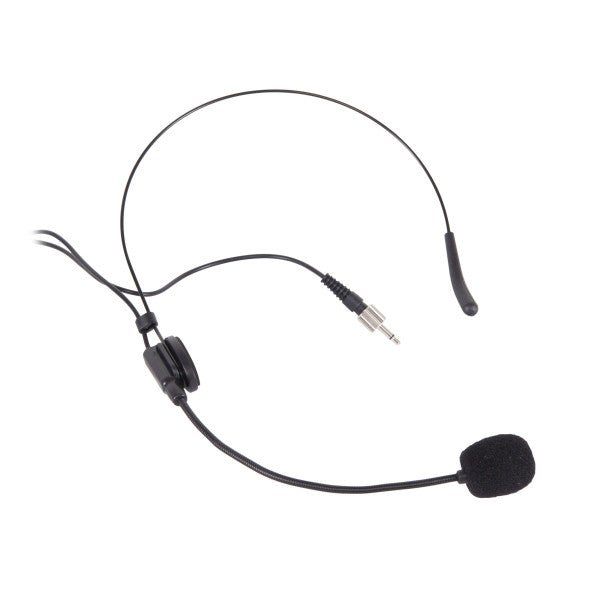

HCM25 Headset Microphone
-

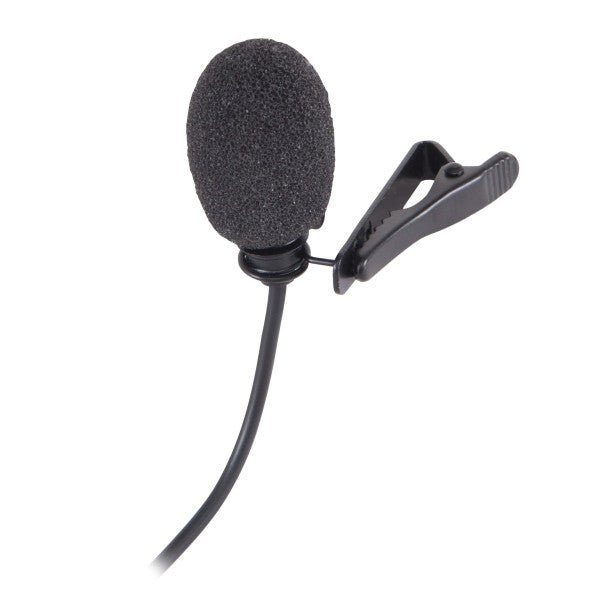

LCH100 Lavalier Microphone
-
Universal USB Power Adapter
-
ABS carrying and storage case
