DAP Audio Core Mix 2 USB

The Ultimate Compact DJ Mixer: The DAP CORE MIX-2 USB

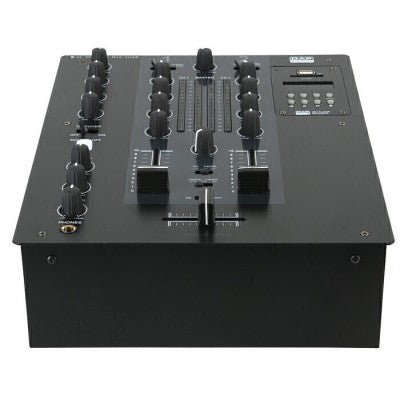

The DAP CORE MIX-2 USB is a basic 2-channel analogue DJ mixer that packs a professional punch. It features 4 analogue inputs and 2 independent USB-Audio interfaces, making it incredibly easy to connect your laptop and route the output of your DJ software directly through the mixer. The headphone output includes a low-tone control, allowing you to adjust the sound to your preference.

Designed for performance and durability, both the channel and cross-faders have selectable curves. All potentiometers are locked below the surface for extra stability, and a separate fader print board ensures easy maintenance. A standout feature is the built-in MP3 module, which can record and play back your live performance directly to a USB or SD device, making it a versatile tool for any DJ.

Key Features:

• 2 Built-in USB Audio Interfaces: Easily connect two laptops (PC/Mac) for seamless DJ handovers or complex digital setups.

• High-Quality Components: A robust metal housing and high-quality components ensure stability and a long service life.

• 60 mm VCA Faders: Smooth and reliable 60 mm faders for precise level control.

• MP3/USB/SD Recorder & Player: Record your live sets directly to a USB stick or SD card, and play back tracks from the same sources.

• LED VU Meter for Each Channel: Keep an eye on your levels with dedicated LED metering for each channel.

• Bluetooth Connectivity: Features a Bluetooth 5.0 receiver with a 20m range for wireless audio playback.

Technical Specifications:

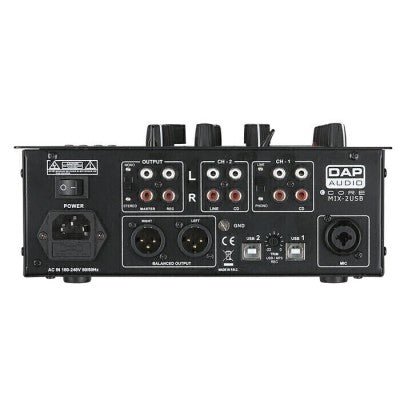

• Inputs:

  • Mono Inputs: 1 (3-pin XLR, TRS balanced 6.3 mm)

  • Stereo Inputs: 4 (RCA)

  • Phono Inputs: 1 (RCA)

• Outputs:

  • Main Outputs: 2 (3-pin XLR, RCA)

  • Monitor Outputs: 1 (RCA)

  • Headphone Output: 1 (TS balanced 6.3 mm)

  • Record Output: 1 (RCA)

• Audio Interface:

  • USB Type: 2.0

  • Sample Rate: 48 kHz

  • Channels: 2 In / 2 Out

• Media Player:

  • Supported Files: MP3, WAV

  • Max Storage Size: 64 GB

• Audio Specifications:

  • THD: < 0.1%

  • Frequency Response: 20 Hz - 20,000 Hz

• Sound Editing:

  • Channel EQ: 3 Bands (70, 1,000, 13,000 Hz)

  • Microphone EQ: 3 Bands (120, 800, 5,000 Hz)

• Mechanical Specifications:

  • Dimensions (W x H x L): 11.8" x 3.5" x 9.4" (300 x 88 x 240 mm)

  • Weight: 7.5 lbs (3.4 kg)

  • Housing: Metal

In the Box:

• DAP CORE MIX-2 USB Mixer

• IEC cable
